AIR-CONDITIONER

DCA-500TM

product CAD Download

Specification

MODEL DCA-500TM RATED CURRENT STA-RUN [A] 5.8-2.0 I 8.2-2.5
VOLTAGE [V] 220 USE ENVIRONMENT 20~45℃, 70% RH
FREQUENCY [Hz] 50 I 60 W*H*D [mm] 590x280x305
CAPACITY kcal/h 500 I 500 WEIGHT [kg] 23.5
BTU/h 2000 I 2000 EXTERNAL AIRFLOW [㎥/h-CFM]
W INTERNAL AIRFLOW [㎥/h-CFM]
POWER CONSUMPTION [W] 414 I 513 REFRIGERANT R134a

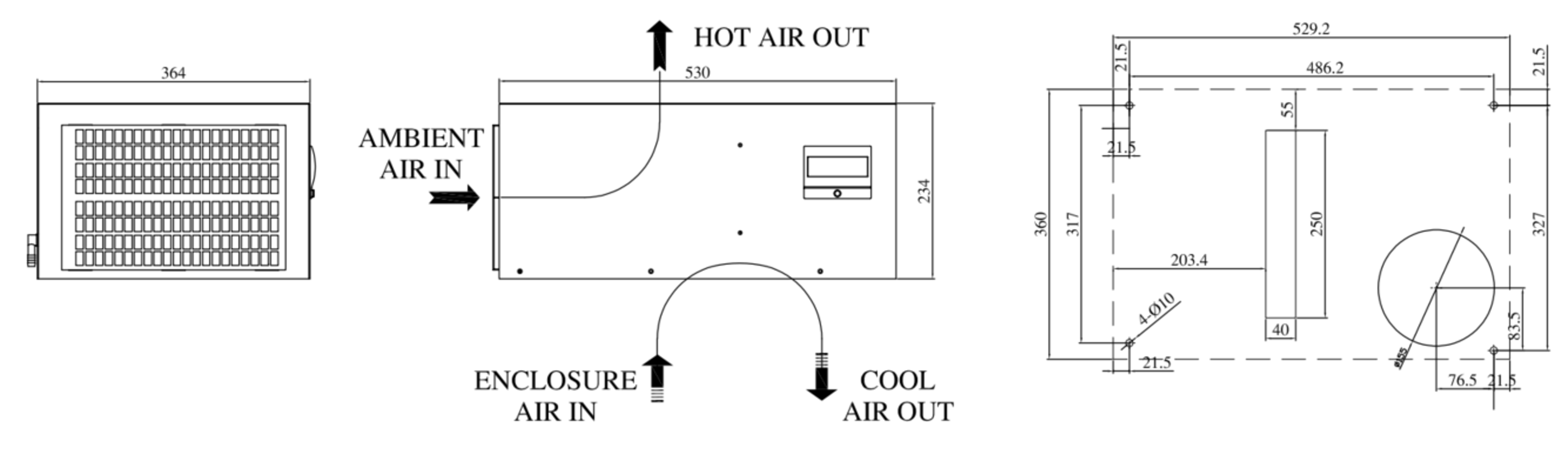

Mounting Image

  • SIDE VIEW
  • FRONT VIEW
  • MOUNTING CUT-OUT
Mounting Image
